Flightgear Interior shadow cubemap kit

This is a kit for making an interior shadow for the Effects/model-interior in Flightgear 3.6

Steps are.

  1. Load the interior-shadow-cubemap-creator.blend
  2. Import your model.
  3. Place the camera at the correct place (see the F-15 reference picture)
  4. Use the animate button – this will create 6 correctly oriented png files

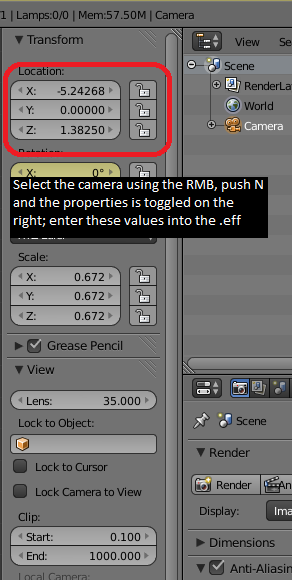

  5. Use the properties to find the X,Y,Z of the camera
  6. Modify interior-shadow.eff to have the correct coordinates.
  7. Move the 6 png files to the appropriate place; I use Model/Effects/inteior

AttachmentSize
als-interior-shadow-blender-instructions.png251.63 KB
interior-shadow.eff1.31 KB
interior-shadow-cubemap-creator.blend550.43 KB
als-interior-shadow-camera-coords.png49.36 KB
